HERDER ELEKTRONISCHE SYSTEMEN

Personal / public technical prototype

5 V / 1 A
SMPS.

An offline flyback prototype documented from transformer winding and component selection through waveform capture and bench validation.

FLYBACKTNY285MAGNETICSWAVEFORMSVALIDATION

01 / Objective

Turn a power stage
into evidence.

The project follows an offline flyback prototype through transformer and component decisions, schematics or BOM material, waveform capture and bench validation notes.

This is a personal public prototype. It is not presented as a certified supply, production design, commercial deployment or guaranteed output result.

02 / Scope

Magnetics,
switching, tests.

Technical scope

The repository provides a traceable record of transformer work, component selection, schematic/BOM material, captured switching waveforms and bench observations.

Topology

Offline flyback prototype.

Validation

Bench measurements and waveform review.

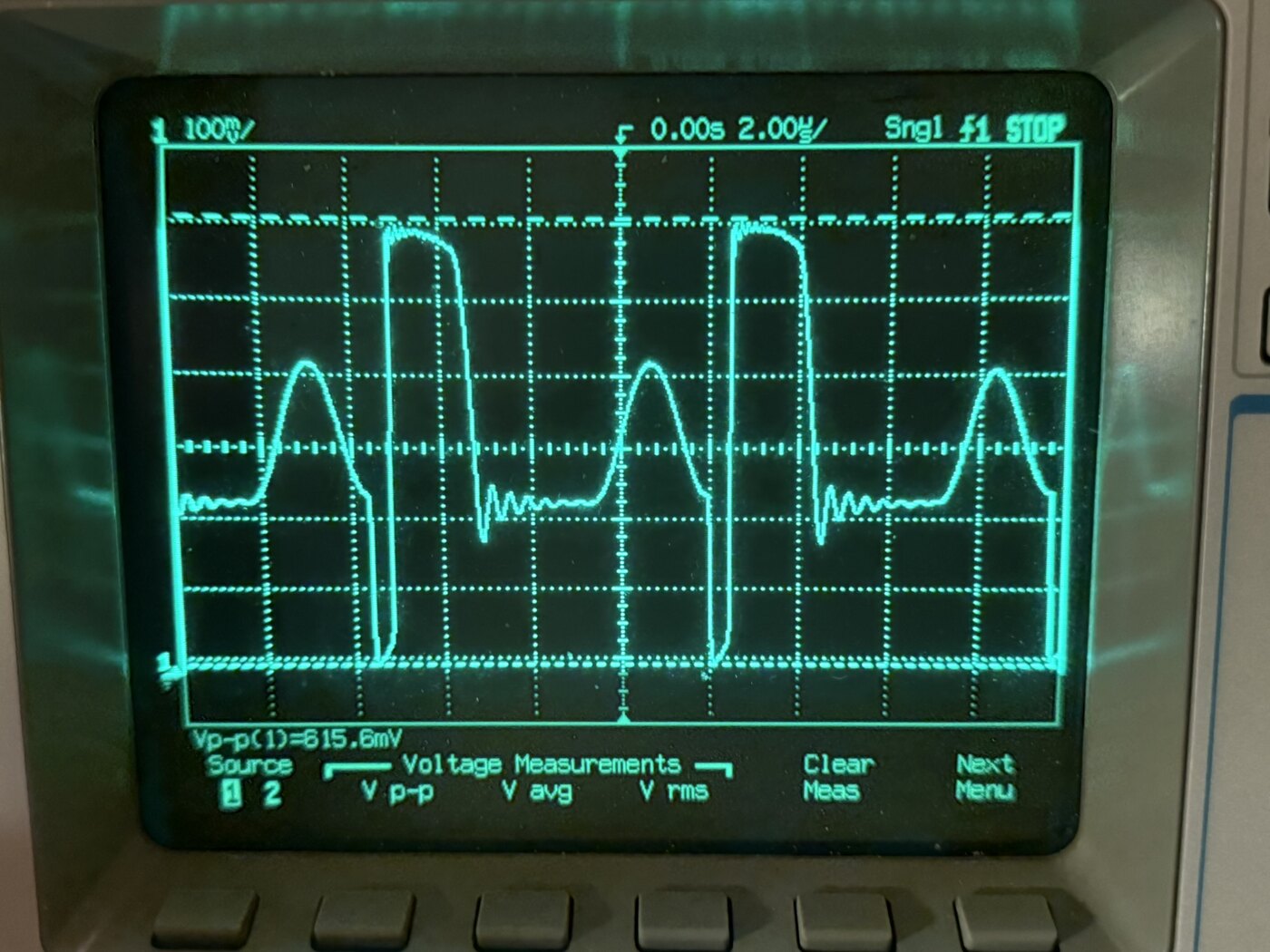

Oscilloscope photograph showing the flyback converter drain switching waveform
Switching-drain waveform photograph from the public repository; source file Drain.JPEG.

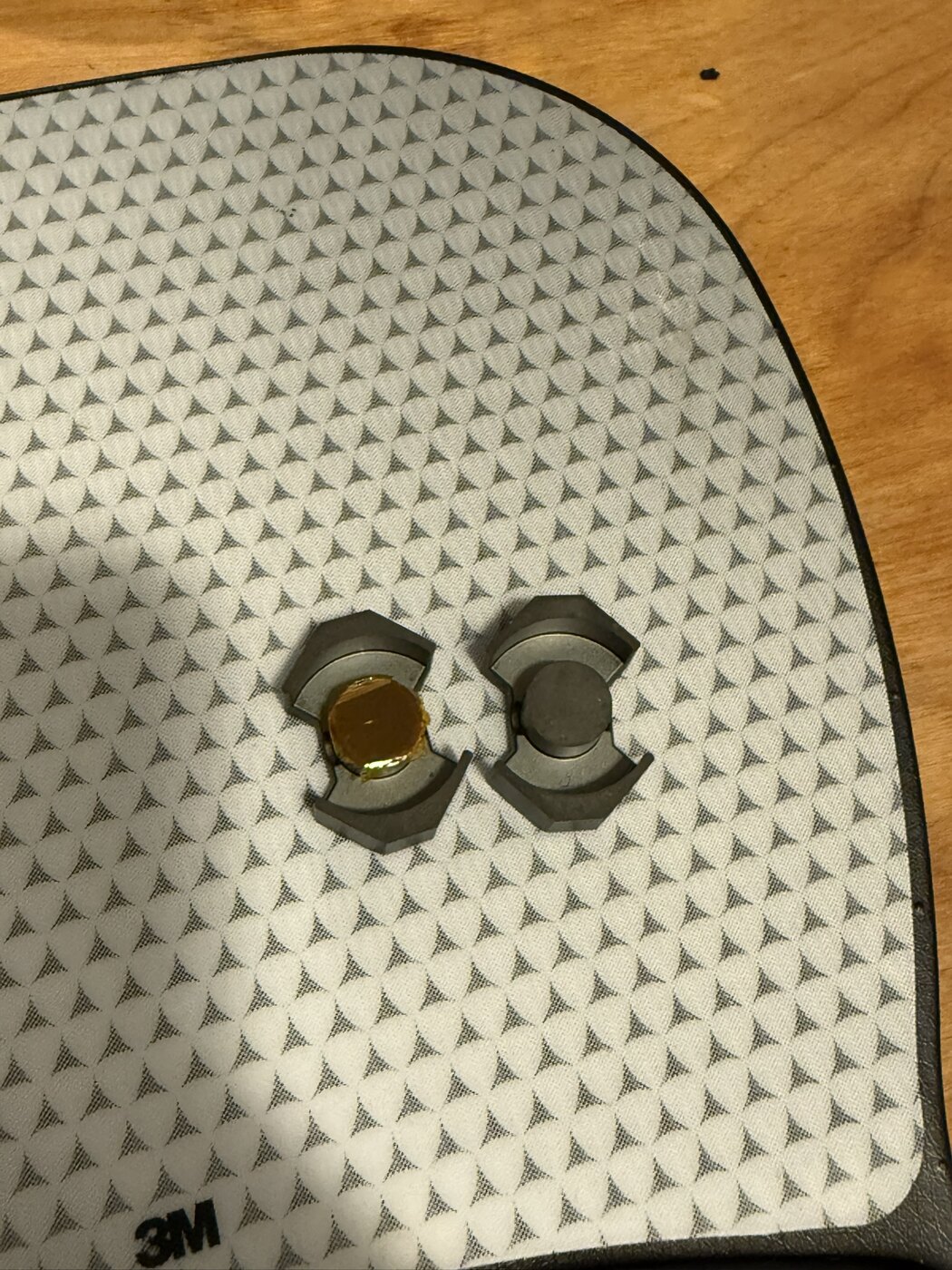

Close photograph of the flyback transformer core, gap and Kapton insulation construction
Gapped transformer and Kapton insulation construction; source file Kapton_tape_gapped_transformer.JPEG.

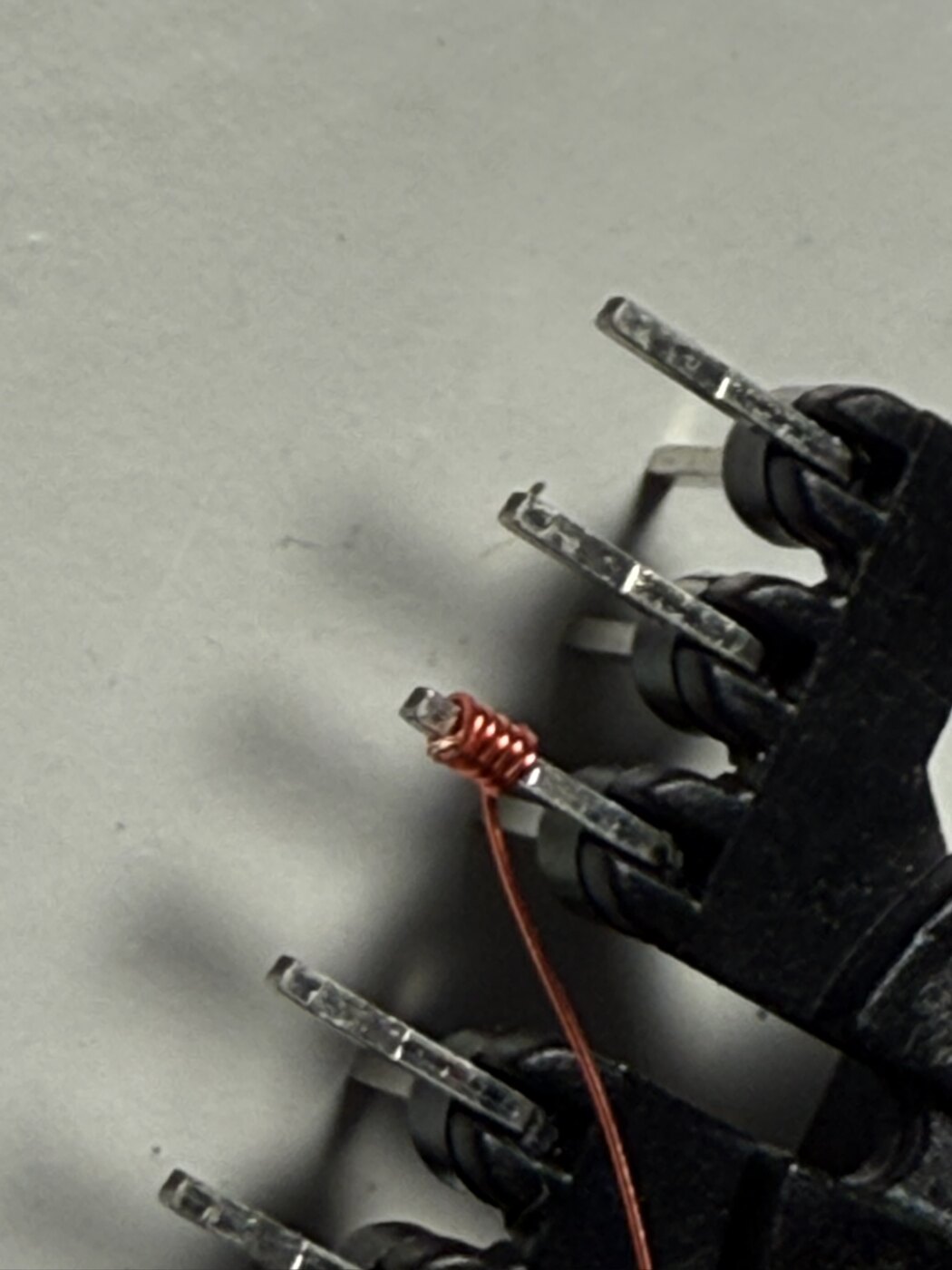

Close photograph documenting flyback transformer pin and termination orientation
Transformer pin and termination orientation; source file Transformer_Pin.JPEG.

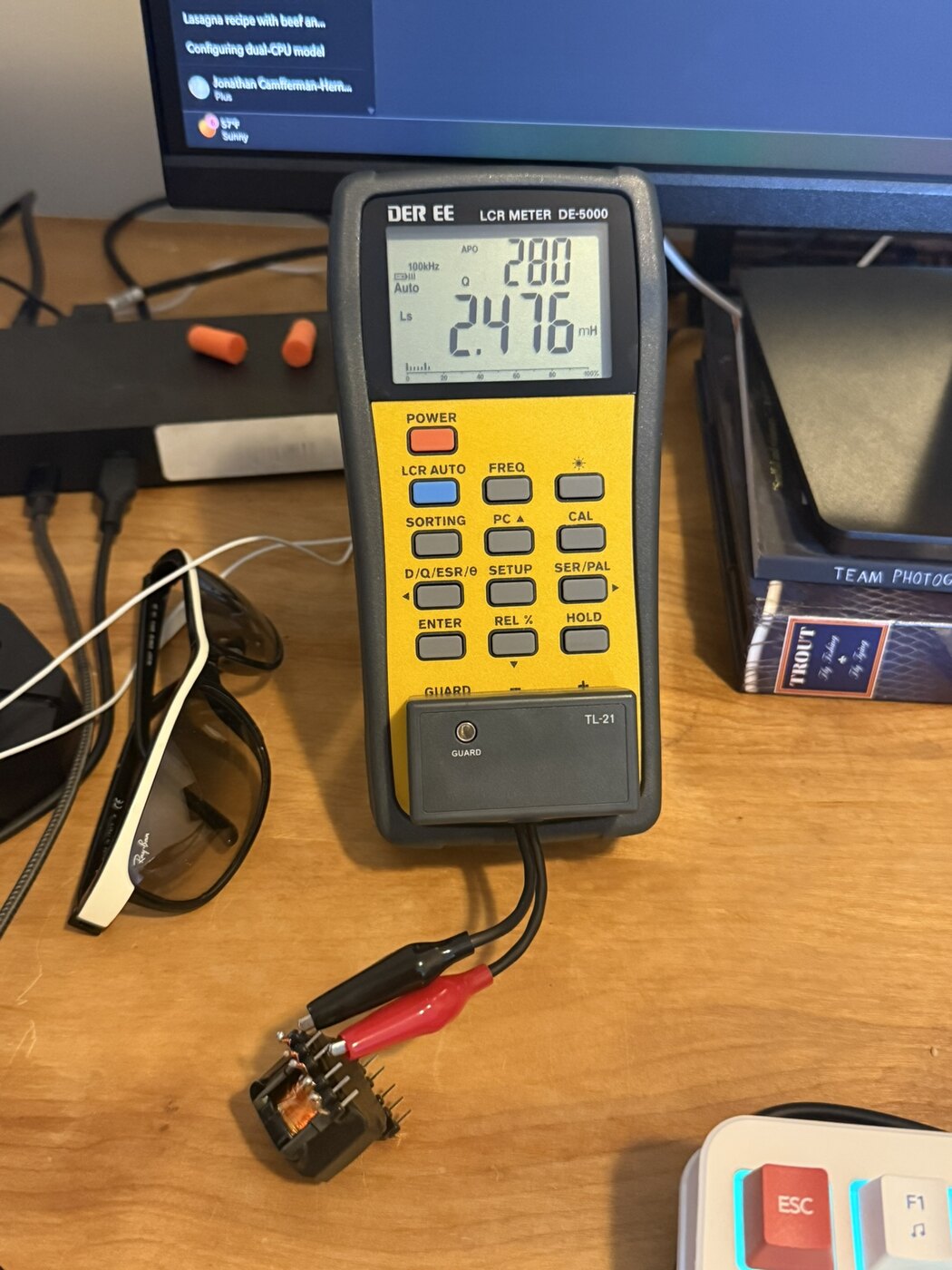

Meter photograph documenting a primary inductance measurement on the flyback transformer
Primary-winding inductance measurement setup/readout; source file Primary_Inductance.JPEG.

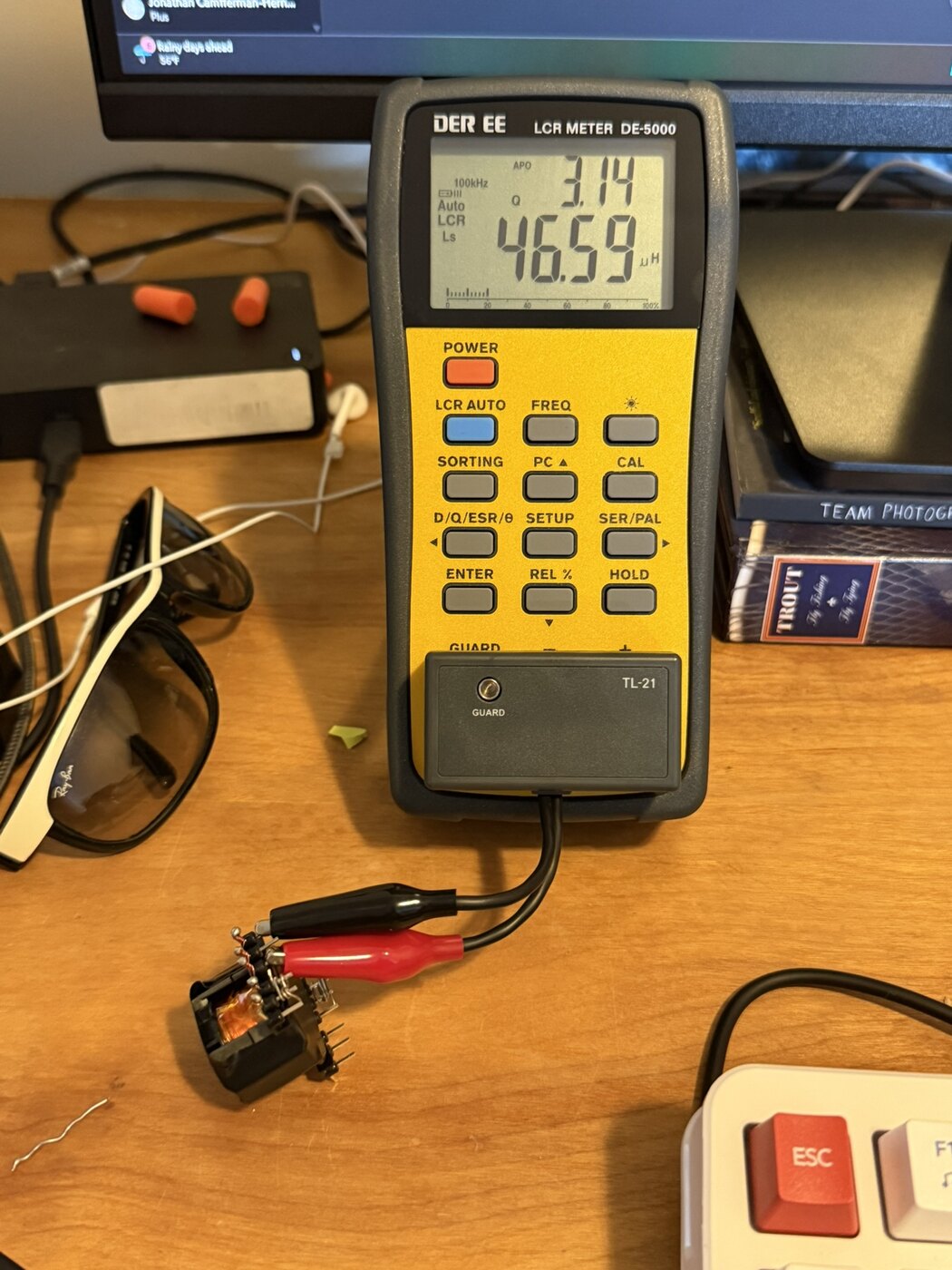

Meter photograph documenting a leakage inductance measurement on the flyback transformer
Leakage-inductance measurement setup/readout; source file Leakage_Inductance.JPEG.

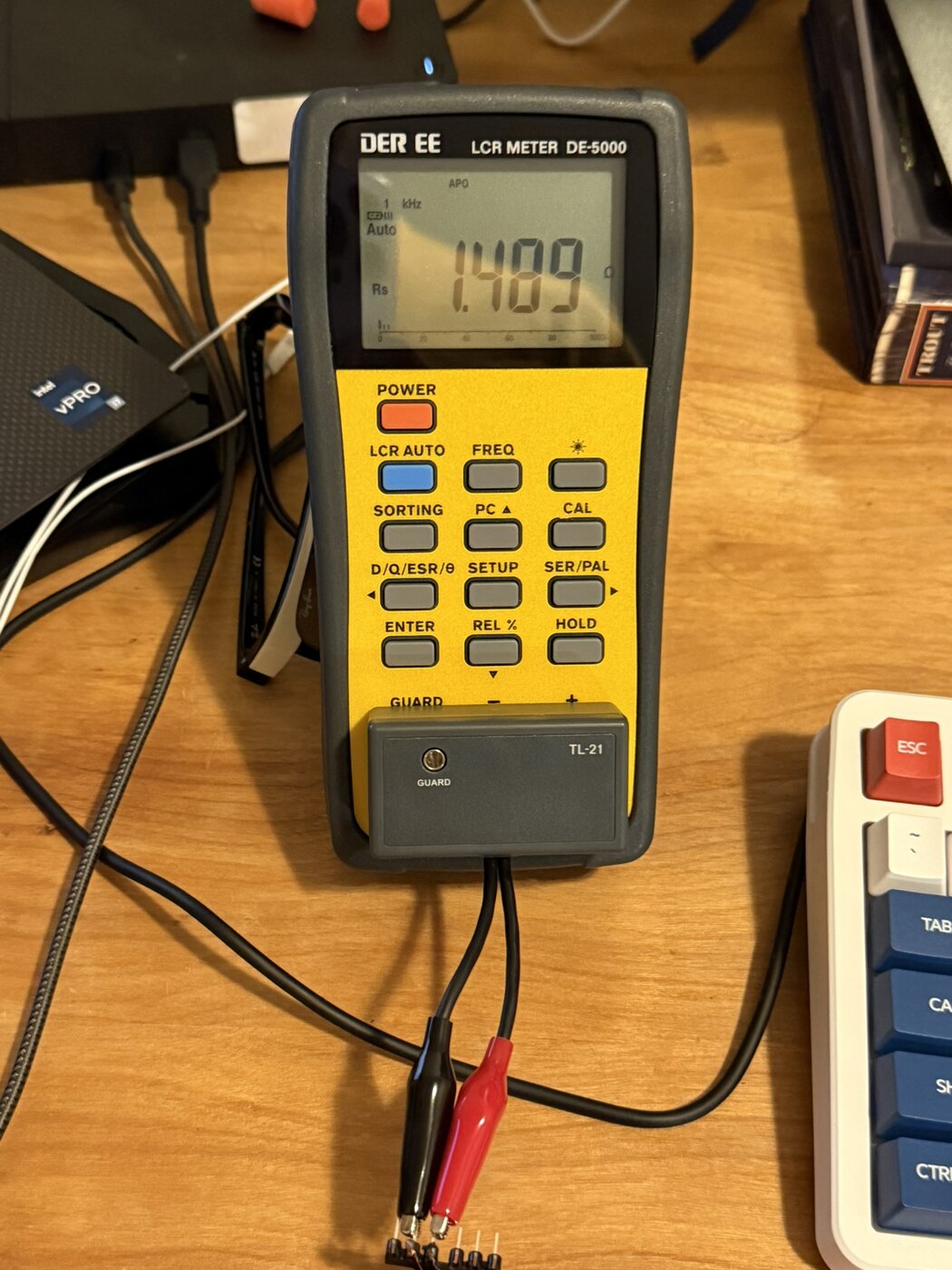

Meter photograph documenting resistance measurement of the 72-turn transformer winding
72-turn winding resistance measurement setup/readout; source file 72Turn_Resistance.JPEG.

03 / Evidence

Measured under
stated conditions.

This gallery is curated from existing project photographs supplied with the public SMPS repository. Captions identify the documented subject and source file; no values or validation claims are inferred beyond what the photographs show.
